Controlled Kinematics Inc

Precision Perfected for Every Environment

The Netzer Encoder Advantage - Traditional optical encoders crack under vibration. Magnetic encoders fail near heavy motors and EMI. Netzer’s proprietary capacitive technology delivers the best of both worlds: extreme ruggedness paired with up to 26-bit resolution.

Find the Right Endoder for Your Application - in Seconds.

Get Your Free Guide

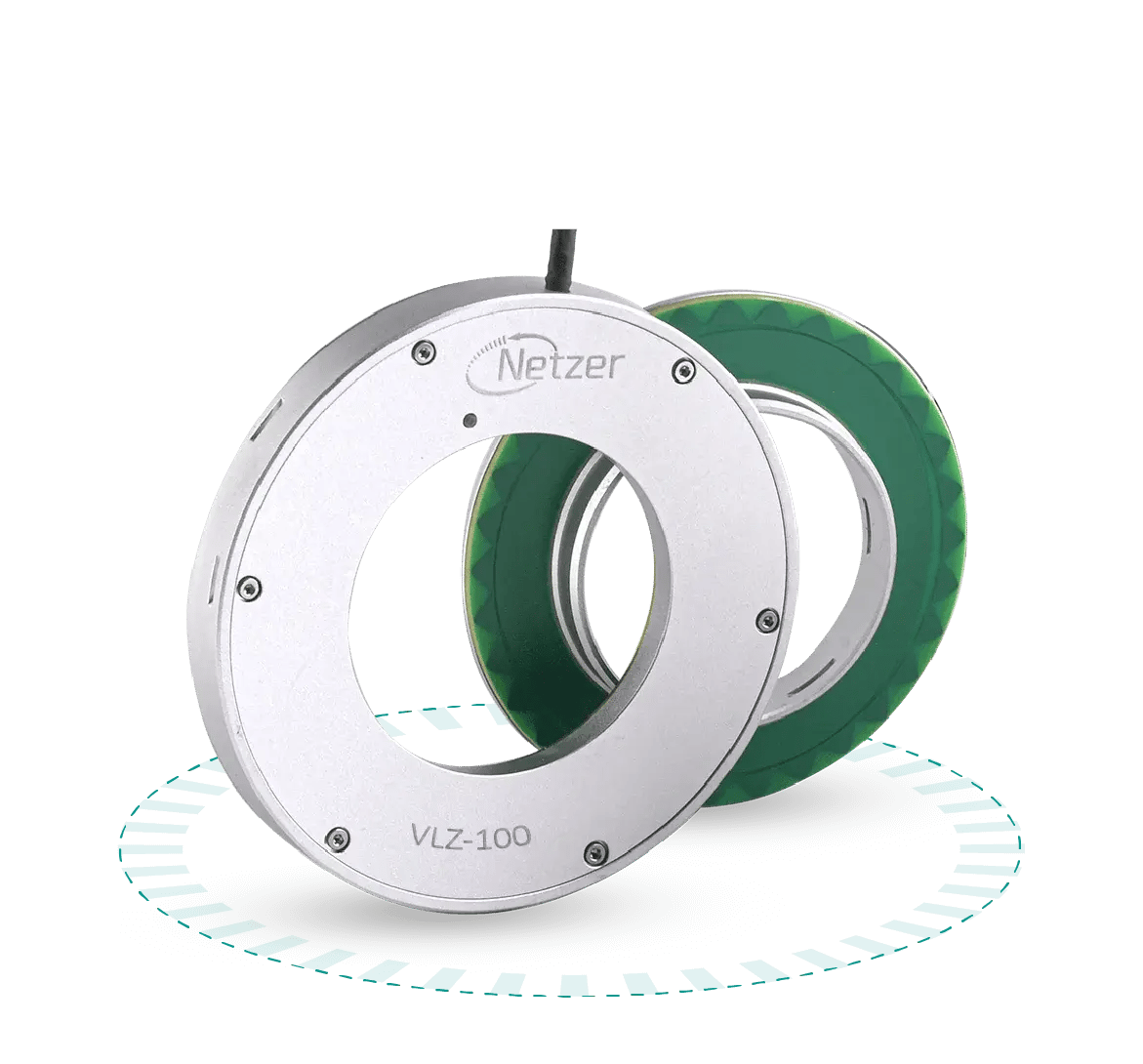

VLZ-100

Why Engineers Choose Netzer Encoders

Engineered for Space, Air, Land, Sea, Semiconductor, Healthcare, and Robotics

Netzer Space
Space & Semiconductor
Netzer Air
Aerospace & Defense
Netzer Health
Medical & Healthcare
Netzer Ag
Robotics & Automation

High Precision

Absolute single turn position output with accuracy up to 0.001° degrees and resolutions up to 26-bit

Compact Design

Reduce system weight (as low as 2g) and space with low-profile designs (=<10 mm)

High Reliability

Wear-free contactless design operates in high shock (100g for 6ms per IEC 60068) and vibration (20 to 2000Hz per MIL 810G)

Extreme Temperature

Operates in extreme durability and longevity -55 to 125°C with integrated thermal drift compensation.

Extreme Environments

Rated for vacuum, radiation, and resistance against EMI and magnetic interference.

Wide Range of Sizes

The hollow shaft designs with OD 25 to 247mm.

Ready to integrate your encoder?

Contact Controlled Kinematics

408.945.1616 | cki.group@ckinematics.com

Download the Guide

Identify the Product Series

Select your application environment below to identify the Netzer Product Series.

Industrial Environment: -40 to 85°C

VLX Series

  • Resolution: 19-26 bit
  • Speed: Up to 16,000 RPM
  • Temp: -40 to 105°C
  • Accuracy: ±0.006°
  • Repeatability: Up to ±0.001°
  • Comms: SSI/BiSS-C
  • OD: 13.5 - 247.7mm

.

Extreme Temperature: -55 to 125°C

VLT Series

  • Temp: -55 to 125°C
  • Resolution: 19-26 bit
  • Speed: Up to 16,000 RPM
  • Temp: -40 to 105°C
  • Accuracy: ±0.006°
  • Repeatability: Up to ±0.001°
  • Comms: SSI/BiSS-C
  • OD: 13.5 - 247.7mm
Vacuum: TML < 1%, CVCN < 0.1%

VLS Series

  • Out-Gassing: TML < 1%, CVCN < 0.1%
  • Resolution: 19-26 bit
  • Speed: Up to 16,000 RPM
  • Temp: -40 to 105°C
  • Accuracy: ±0.006°
  • Repeatability: Up to ±0.001°
  • Comms: SSI/BiSS-C
  • OD: 13.5 - 247.7mm
Space: TID - 30KRAD

 VLS Series

  • Radiation: TID - 30KRAD
  • SEE: 1E11 p/cm^2/s protons @ 200MeV
  • Out-Gassing: TML < 1%, CVCN < 0.1%
  • Resolution: 19-26 bit
  • Speed: Up to 16,000 RPM
  • Temp: -40 to 105°C
  • Accuracy: ±0.006°
  • Repeatability: Up to ±0.001°
  • Comms: SSI/BiSS-C
  • OD: 13.5 - 247.7mm
Performance - Resolution Up to 26 bit

 VLZ Series

  • Resolution: 19-26 bit

  • Speed: Up to 6,000 RPM

  • Temp: -45 to 85°C

  • Accuracy: ±0.006°

  • Repeatability: Up to ±0.001°

  • Comms: SSI/BiSS-C

  • OD: 25.0 - 247.7mm

High Speed - Up to 16,000 RPM
VLP Series

  • Speed: Up to 16,000 RPM

  • Temp: -40 to 105°C

  • Resolution: 17-23 bit
  • Accuracy: ±0.006°
  • Repeatability: Up to ±0.001°
  • Comms: SSI/BiSS-C
  • OD: 13.5 - 247.7mm
